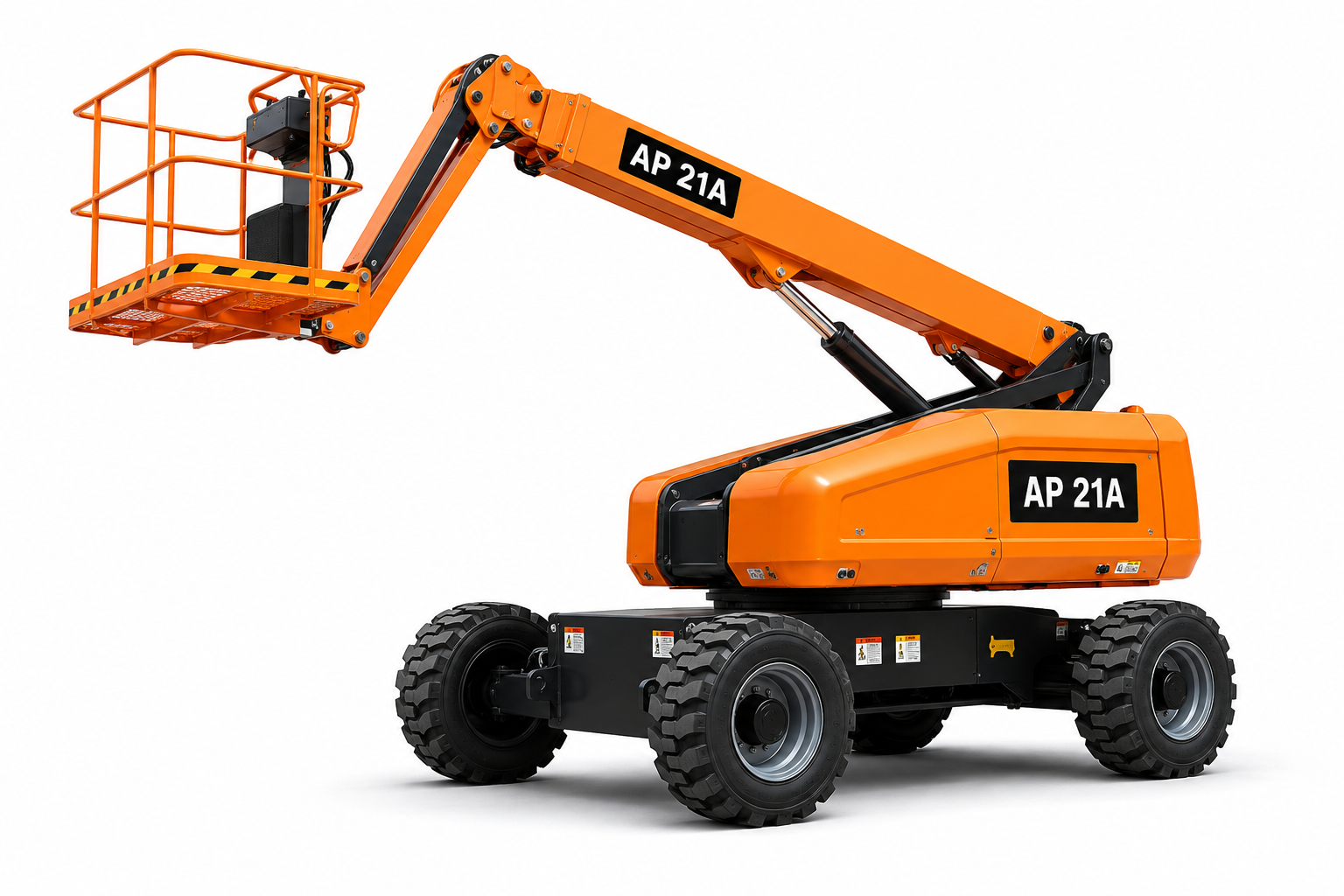

The AP 21A Aerial Work Platform is a robust self-propelled boom lift designed to provide safe and efficient access to elevated work areas up to 21 metres. Featuring a durable boom structure, advanced hydraulic controls, and 360° rotation, it delivers excellent stability and performance for construction, industrial maintenance, facility management, and installation applications. Its high platform capacity, easy operation, and reliable safety systems make it an ideal solution for demanding work-at-height tasks.
The AP 21A Aerial Work Platform is a high-performance self-propelled boom lift designed for safe, efficient, and reliable access to elevated work areas. Built with a robust steel structure, advanced hydraulic technology, and intelligent control systems, the AP 21A delivers excellent performance for construction, industrial maintenance, warehouse operations, facility management, and installation work.
| Specification | Value |
|---|---|
| Model | AP 21A |
| Machine Type | Self-Propelled Articulating Boom Lift |
| Maximum Working Height | 21.0 m |
| Maximum Platform Height | 19.0 m |
| Maximum Horizontal Outreach | 12.0 m |
| Platform Capacity | 230 kg |
| Platform Size (L × W) | 1.83 × 0.76 m |
| Maximum Occupants | 2 Persons |
| Boom Rotation | 360° Continuous |
| Platform Rotation | ±90° |
| Drive Type | 4WD |
| Power Source | Diesel Engine |
| Travel Speed (Stowed) | 5.0 km/h |
| Travel Speed (Raised) | 1.0 km/h |
| Gradeability | 40% |
| Minimum Turning Radius (Inside) | 2.0 m |
| Minimum Turning Radius (Outside) | 4.5 m |
| Ground Clearance | 300 mm |
| Tyres | Foam-Filled Rough Terrain Tyres |
| Overall Length | 8.80 m |
| Overall Width | 2.49 m |
| Overall Height (Stowed) | 2.60 m |
| Wheelbase | 2.50 m |
| Machine Weight | 12,500 kg |
| Hydraulic Tank Capacity | 120 L |
| Fuel Tank Capacity | 120 L |
| Control System | Electro-Hydraulic Proportional Controls |
| Emergency Lowering System | Standard |
| Tilt Alarm | Standard |
| Emergency Stop Button | Standard |
21-meter maximum working height
Stable and durable boom structure
Smooth hydraulic operation
360° continuous rotation
High load-bearing platform
Advanced safety systems
Easy maintenance access
Suitable for indoor and outdoor applications
