ASL 8

ASL 8

ASL 8

Category:

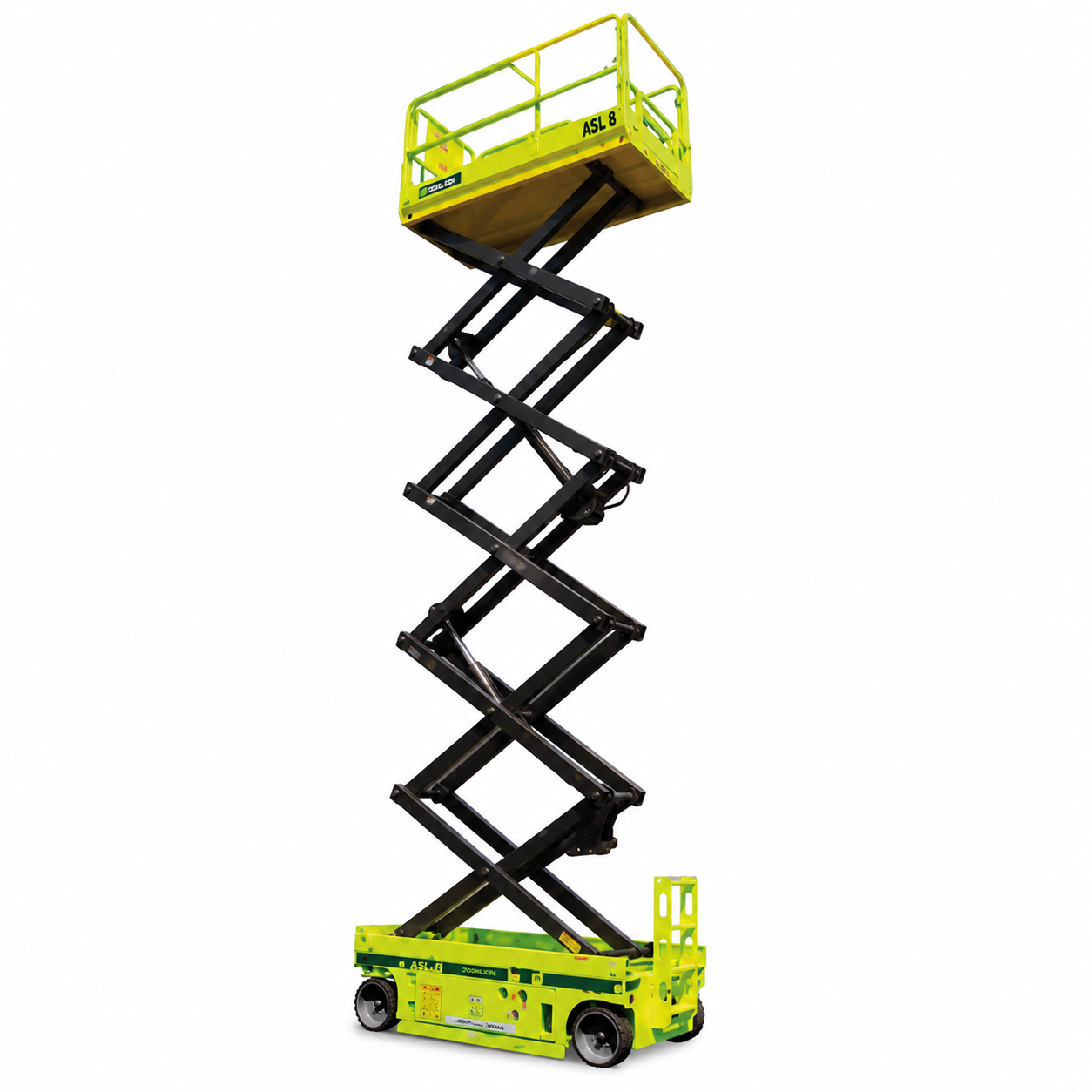

The ASL 8 Self-Propelled Electric Scissor Lift is a compact and reliable aerial work platform designed to provide safe and efficient vertical access for indoor and outdoor maintenance tasks. With a maximum working height of 8 metres, zero-emission electric drive, and smooth proportional controls, the ASL 8 is ideal for warehouses, factories, shopping malls, airports, commercial buildings, and construction sites. Its compact dimensions and tight turning radius make it easy to operate in confined spaces while delivering excellent stability and productivity.

Leave a Message and Get a Quote

Description

The ASL 8 Self-Propelled Electric Scissor Lift is a compact and reliable aerial work platform designed to provide safe and efficient vertical access for indoor and outdoor maintenance tasks. With a maximum working height of 8 metres, zero-emission electric drive, and smooth proportional controls, the ASL 8 is ideal for warehouses, factories, shopping malls, airports, commercial buildings, and construction sites. Its compact dimensions and tight turning radius make it easy to operate in confined spaces while delivering excellent stability and productivity.

Specification Value
Model ASL 8
Machine Type Self-Propelled Electric Scissor Lift
Maximum Working Height 8.0 m
Maximum Platform Height 6.0 m
Platform Capacity 230 kg
Maximum Occupants 2 Persons
Platform Size (L × W) 1.67 × 0.74 m
Platform Extension 0.90 m
Overall Length 1.86 m
Overall Width 0.76 m
Overall Height (Rails Up) 2.18 m
Overall Height (Rails Folded) 1.85 m
Wheelbase 1.36 m
Ground Clearance 90 mm
Drive Speed (Stowed) 3.5 km/h
Drive Speed (Raised) 0.8 km/h
Gradeability 25%
Turning Radius (Inside) Zero
Turning Radius (Outside) 2.12 m
Power Source 24 V Battery System
Battery 4 × 6 V / 240 Ah
Charger 24 V / 25 A
Machine Weight 1,500 kg
Tyres Non-Marking Solid Tyres
  • Maximum working height of 8 m
  • Electric battery-powered operation
  • Zero-emission and low-noise performance
  • Self-propelled drive system
  • Drivable at full platform height
  • Foldable guardrails for easy transport
  • Platform extension deck
  • Automatic braking system
  • Emergency lowering system
  • Tilt protection system
  • Load sensing system
  • Non-marking tyres
  • Compact design for indoor applications
  • Easy maintenance with swing-out service trays
